Cable Glands（Marine Watertight）
- IMPA 794811-794821
- Time:2009-6-9
- Contact Us

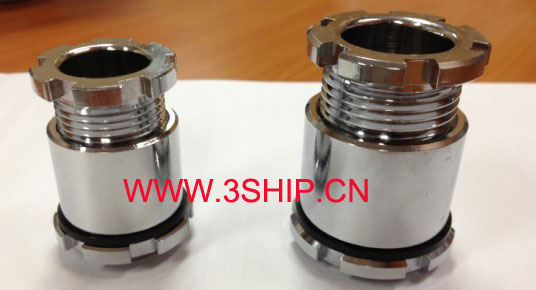

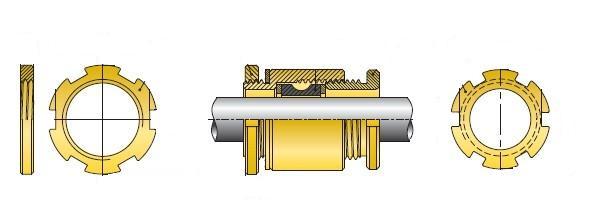

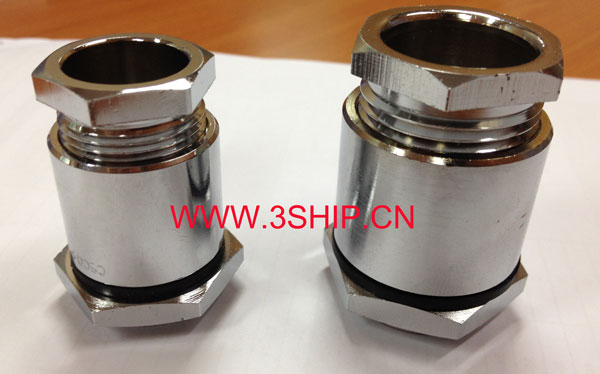

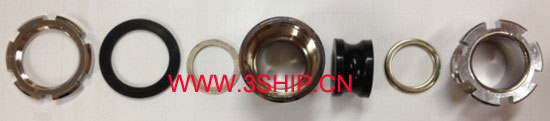

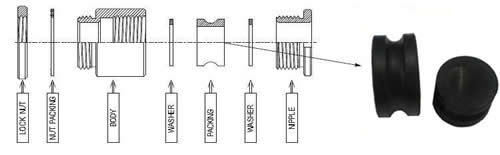

电缆填料函（防爆 船用） Cable Glands（Marine Watertight） 794811—794821 JIS 日标 DIN 德标 TJ夹紧式 TH焊接式 TG管式 Detailed Product Description JIS cable gland Marine cable gland--JIS standard type CODE Gland size Thread PF Packing type Cable rang(mm) Thread length (mm) Entry hole size(mm) HX-JM3/ JIS-10 3/8" A 6-7 11 18 HX-JM3/8B B 7-8 HX-JM1/ JIS-15 1/2" A 8-9 11 22 HX-JM1/2B B 9-10 HX-JM1/ C 9-11 HX-JM3/ JIS-20 3/4" A 11-12 11 27 HX-JM3/4B B 12-13 HX-JM3/ C 12-15 HX-JM JIS-25 1" A 15-16 11 34 HX-JM1B B 16-18 HX-JM C 16-20 HX-JM1-1/ JIS-30 1-1/4" A 20-22 12 43 HX-JM1-1/4B B 22-24 HX-JM1-1/ C 22-26 HX-JM1-1/2Aa JIS-35 1-1/2" A 26-28 12 49 HX-JM1-1/2Ba B 28-30 HX-JM1-1/2Ca C 26-30 HX-JM1-1/2Ab JIS-40 A 30-32 HX-JM1-1/2Bb B 32-34 HX-JM1-1/2Cb C 30-34 HX-JM2Aa JIS-45 2" A 34-36 12 61 HX-JM2Ba B 36-38 HX-JM2Ca C 36-40 HX-JM2Ab JIS-50 A 40-42 HX-JM2Bb B 42-44 HX-JM2Cb C 40-44 HX-JM2-1/2Aa JIS-55 2-1/2" A 44-46 12 76 HX-JM2-1/2Ba B 46-48 HX-JM2-1/2Ca C 46-50 HX-JM2-1/2Ab JIS-60 A 50-52 HX-JM2-1/2Bb B 52-54 HX-JM2-1/2Cb C 52-56 HX-JM3Aa JIS-65 3" A 56-58 14 89 HX-JM3Ba B 58-60 HX-JM3Ab JIS-70 A 60-62 HX-JM3Bb B 62-64 HX-JM JIS-75 A 64-66 HX-JM3Bc B 66-70 Material: Brass,chromium plated Gland Type: JIS Standard Entry Thread: PF Application: For use all types of unarmoured cables.
Material: Brass,chromium plated
Gland Type: JIS Standard
For use all types of unarmoured cables.
Detailed Product Description

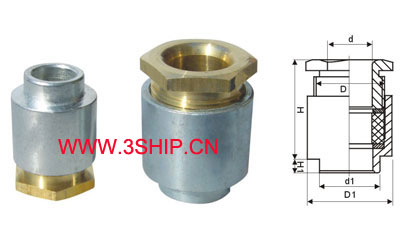

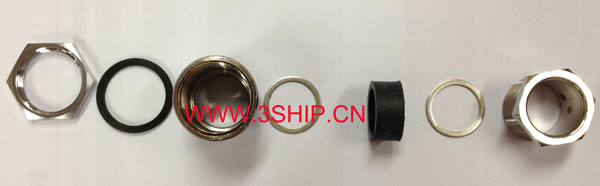

TJ Clamping Type Marine Cable Gland
Protection degree: Reach to IP54
TJ Clamping Type Marine Cable Gland
Material:
1. D part: Brass, chromium plated
2. D1 part: Brass, chromium plated
3. Clamp ring: NBR
Protection degree:
Reach to IP54 when its within regulated bayonet mount and rubber washer is used to fix the sealing nut.
|
Item |
d (mm) |
D (mm) |
d1 (mm) |
D1 (mm) |
H (mm) |
H1 (mm) |
Cable range(mm) |
|
TJ-8 |
8 |
M16*1 |
M14*1 |
20 |
32 |
9 |
5-7 |
|
TJ-13 |
13 |
M20*1 |
M18*1 |
24 |
35 |
10 |
6-12 |
|
TJ-16 |
16 |
M27*1.5 |
M22*1.5 |
31.5 |
40 |
12 |
11-15 |
|
TJ-19 |
19 |
M30*1.5 |
M27*1.5 |
34.5 |
42 |
12 |
14-18 |
|
TJ-24 |
24 |
M35*1.5 |
M30*1.5 |
39.6 |
44 |
12 |
17-23 |
|
TJ-28 |
28 |
M42*2 |
M36*1.5 |
46.5 |
46 |
15 |
22-27 |
|
TJ-34 |
34 |
M47*2 |
M42*2 |
54 |
49 |
15 |
26-33 |
|
TJ-42 |
42 |
M55*2 |
M52*2 |
62 |
54 |
15 |
32-41 |
|
TJ-50 |
50 |
M62*2 |
M58*2 |
68.5 |
56 |
15 |
40-49 |
|
TJ-58 |
58 |
M71*2 |
M68*2 |
77.5 |
56 |
20 |
48-57 |
Detailed Product Description

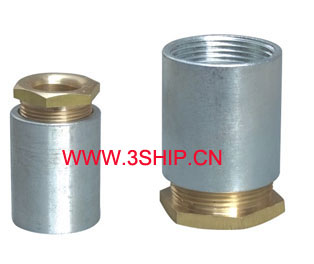

TH Marine Cable Gasket
Application: For use with all types of braided or unarmoured marine electrical cable fittings.
TH marine cable gland
|
CODE |
Size |
d(mm) |
D(mm) |
d1 (mm) |
D1(mm) |
H(mm) |
H1 (mm) |
Cable range(mm) |
|
HX-SMTH8 |
TH-8 |
8 |
M16*1 |
13 |
20 |
32 |
3 |
5-7 |
|
HX-SMTH13 |
TH-13 |
13 |
M20*1 |
17 |
24 |
35 |
8 |
6-12 |
|
HX-SMTH16 |
TH-16 |
16 |
M27*1.5 |
22 |
32 |
40 |
8 |
11-15 |
|
HX-SMTH19 |
TH-19 |
19 |
M30*1.5 |
24 |
35 |
42 |
8 |
14-18 |
|
HX-SMTH24 |
TH-24 |
24 |
M35*1.5 |
30 |
41 |
44 |
8 |
17-23 |
|
HX-SMTH28 |
TH-28 |
28 |
M42*2 |
35 |
49 |
46 |
8 |
22-27 |
|
HX-SMTH34 |
TH-34 |
34 |
M47*2 |
42 |
53 |
49 |
8 |
26-33 |
|
HX-SMTH42 |
TH-42 |
42 |
M55*2 |
50 |
60 |
54 |
8 |
32-41 |
|
HX-SMTH50 |
TH-50 |
50 |
M62*2 |
58 |
69 |
56 |
8 |
40-49 |
|
HX-SMTH58 |
TH-58 |
58 |
M71*2 |
66 |
80 |
56 |
8 |
48-57 |
Material: D part is made of brass while D1 part is made of steel,the clamping part is made of NBR.
Protection degree: IP54
Temperature Resistance:
Approval: CE
Features: Marine cable gland is a high quality cable accessories which installed in the connections of
explosion-proof electrical equipment and cable port, with the advantages of superior performance of
flameproof, safe and reliable structure, easy installation and high protection degree.
Application: Outdoor or Indoor for use with all types of braided or unarmoured marine electrical cable fittings.
TG tube type Cable Glands
Using standard GB/T3667.1-1995
Through hole diameter: TG8TG13TG16TG19TG24TG28TG34TG42TG50TG

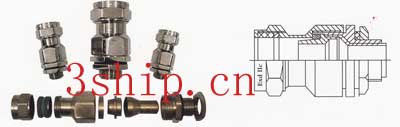

Explosion-proof Cable Glands (dⅡ)
A. Can be used in zone 1 and zone 2 dangerous places.
B. Can be used in ⅡA、ⅡB、ⅡC , group explosive atmosphere.
1. Made of brass or stainless steel.
2. Cable is applied to gasket seal.
3. High protection.
4. Ease to use and install, safety, security, explosion-pro
|
3S-三船 |
SIZE MM |
INSIDE MM |
PIPE THREAD PF |
|
794811 794812 794813 794814 794815 |
10 15 20 25 30 |
7 9 12 16 22 |
3/8 1/2 3/4 1 1-1/4 |
|
794816 794817 794818 794819 794820 |
35 40 45 50 55 |
28 32 36 42 46 |
1-1/2 1- 1/2 2 2 2-1/2 |
|
794821 |
60 |
52 |
2-1/2 |
| JIS CABLE GLAND A2 日标 | ||
| CG | PHOTO | |
| CG-10 | ||
| CG-15 | ||
| CG-20 | ||
| CG-25 | ||
| CG-30 | ||
| CG-35 | ||
| CG-40 | ||
| CG-45 | ||
| CG-50 | ||
| CG-55 | ||
| CG-60 | ||
| DIN CABLE GLAND A2 德标 | ||
| PG | PHOTO | |
| PG9 | ||
| PG11 | ||
| PG 13.5 | ||
| PG 16 | ||
| PG 21 | ||
| JIS CABLE GLAND A2 日标 | ||
| CB | PHOTO | |
| CB-15 | ||
| CB-20 | ||
| CB-25 | ||
| CB-30 | ||
| EARTH TAG | ||
| OSET M16 | ||
| OSET M20 | ||
| OSET M25 | ||
| OSET M32 | ||
| OSET M40 | ||
| OSET M50 | ||
| OSET M63 | ||
| OSET M75 | ||
| OSET M90 | ||
DIN Cable Glands

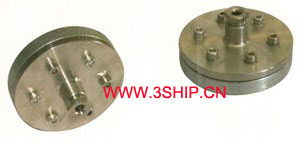

Flang Cable Glands
