SEPAR 2000 Filter Element
- IMPA 01030 01830 04030 00530
- Time:2012-6-30
- Contact Us
SEPAR SWK 2000 FILTER ELEMENT
德国世柏滤芯
MAIN FEATURES
Available with various flow rates from 1 to 67.5US gall./min. Thereby offering fuel filters for an engine performance range of 5 to 10,000kw.
Compact size, various ports, simple installation.
High separation efficiency of water which is contained in the fuel. (No water could be proven acc. to RTüV testing) .
Due to back flushing the service time of the filter elements is extended.
SEPAR 2000 Filter protects the injection pump and injection nozzles.
SEPAR 2000 filter is easy to maintain.
APPLICATION OF THE FILTER
Automotive industry - trucks, buses, mobile cranes, municipality vehicles, etc.
Construction equipment, compressor sets, agricultural equipment, fork lift trucks, etc.
Marine propulsion, Stationary engines - generators, welding and pumping installations, etc.
Mining applications
Special versions for certain applications are available.
MARINE APPLICATIONS
For this purpose switchable filters are available. A water level indication can be supplied optionally.
TEST AND CERTIFICATES
Rheinisch-Westflischer TüV
Kraftfahrt-Bundesamt Flensburg
German Technical Department for Army Ship and Marine Weapons
Germanischer Lloyd Type Approval Certificate
Lloyd Type Approval Certificate
Bureau Veritas Type Approval Certificate
RINA
FLOW RATES
2000/5 = 1.31 gall./min or 78.6 gall./h
2000/5/50 = 1.31 gall./min or 78.6 gall./h
2000/10 = 2.63 gall./min or 157.8 gall./h
2000/18 = 4.25 gall./min or 255 gall./h
2000/40 = 10.5 gall./min or 630 gall./h
2000/130 = 34 gall./min or 2040 gall./h
The German SEPAR2000( LOESING FILTER ) diesel filter imported SEPAR ( World Park ) filter to ensure efficient work such as SEPAR 2000, SEPAR 2000,01030,01830,04030,00530(59) have been widely used.
60 MICRON STAINLESS STEEL | 30 MICRON | 10 MICRON | |||||
Filter Element(滤芯) | Filter Element(滤芯) | Filter Element(滤芯) | |||||
Filter | Element # | Filter | Element # | Filter | Element # | ||
2000/5 2000/5/50 2000/10 2000/18 2000/40 |
00560S 00560/50S 01060S 01860S 04060S |
2000/5 2000/5/50 2000/10 2000/18 2000/40 |
00530 00530/50 01030 01830 04030 |
2000/5 2000/5/50 2000/10 2000/18 2000/40 |
00510 00510/50 01010 01810 04010 |

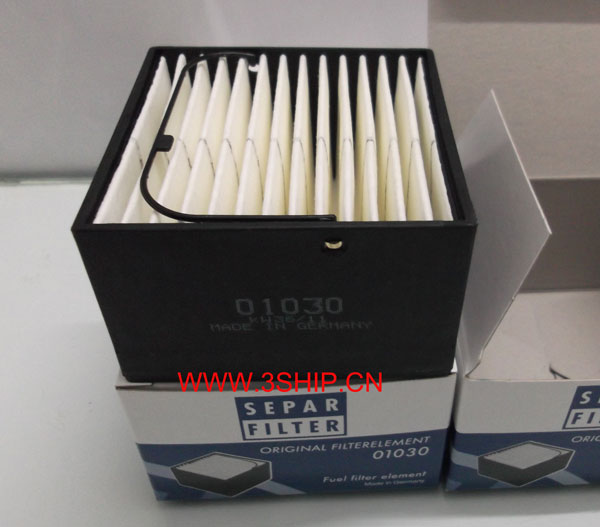

Separ-filter-01030
Size 95*95*65mm Weight 0.15kg

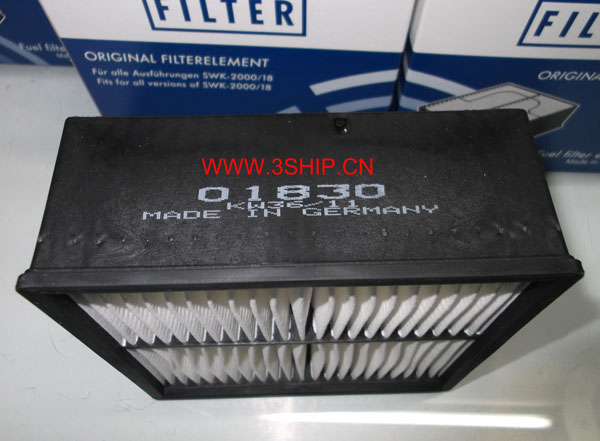

Separ-filter-01830
Size 150*150*65mm Weight 0.3kg
Separ-filter-04030
Separ-filter-00530
Size 75*75*25mm Weight 0.1kg

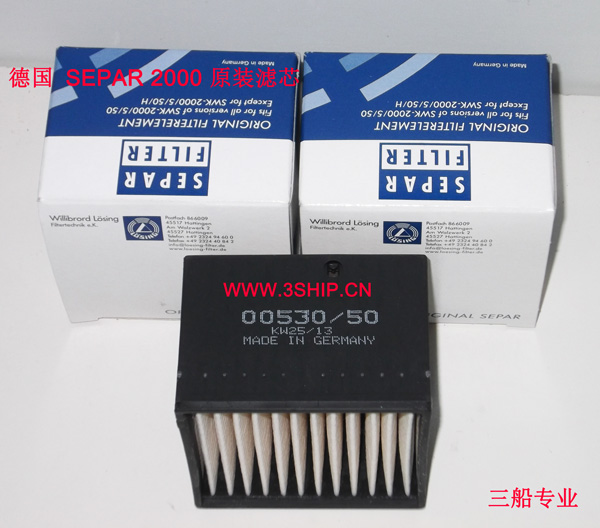

Separ-filter-00530/50 Size 75*75*50mm Weight 0.15kg
