SEPAR SWK 2000 FILTER UNIT

SEPAR SWK 2000 FILTER UNIT

德国世柏滤清器

MAIN FEATURES
Available with various flow rates from 1 to 67.5
US gall./min. Thereby offering fuel filters for an engine performance range of 5 to 10,000kw.
Compact size, various ports, simple installation.

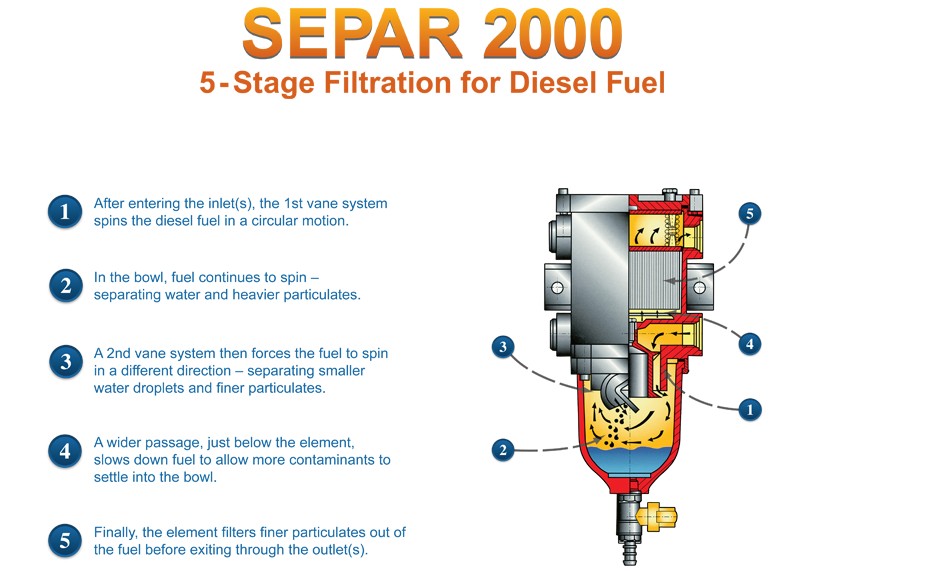

High separation efficiency of water which is contained in the fuel. (No water could be proven acc. to RTüV testing) .
Due to back flushing the service time of the filter elements is extended.
SEPAR 2000 Filter protects the injection pump and injection nozzles.
SEPAR 2000 filter is easy to maintain.

APPLICATION OF THE FILTER
Automotive industry - trucks, buses, mobile cranes, municipality vehicles, etc.
Construction equipment, compressor sets, agricultural equipment, fork lift trucks, etc.
Marine propulsion, Stationary engines - generators, welding and pumping installations, etc.
Mining applications
Special versions for certain applications are available.

MARINE APPLICATIONS
For this purpose switchable filters are available. A water level indication can be supplied optionally.

TEST AND CERTIFICATES
Rheinisch-Westflischer TüV
Kraftfahrt-Bundesamt Flensburg
German Technical Department for Army Ship and Marine Weapons
Germanischer Lloyd Type Approval Certificate
Lloyd Type Approval Certificate
Bureau Veritas Type Approval Certificate
RINA

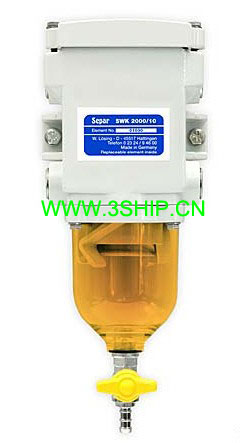

SEPAR SWK 2000 SINGLE UNIT

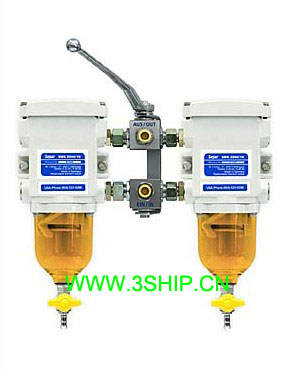

SEPAR SWK 2000 SWYCHABLE UNIT

FLOW RATES
2000/5 = 1.31 gall./min or 78.6 gall./h
2000/5/50 = 1.31 gall./min or 78.6 gall./h
2000/10 = 2.63 gall./min or 157.8 gall./h
2000/18 = 4.25 gall./min or 255 gall./h
2000/40 = 10.5 gall./min or 630 gall./h
2000/130 = 34 gall./min or 2040 gall./h

Please feel free to contact us for more models and detail specifications.
