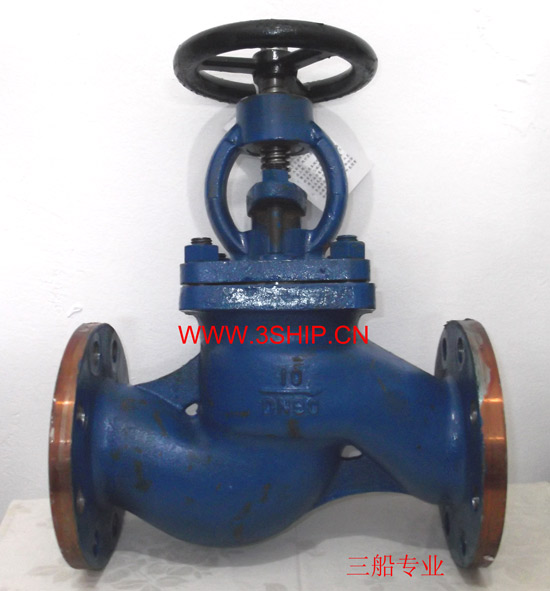

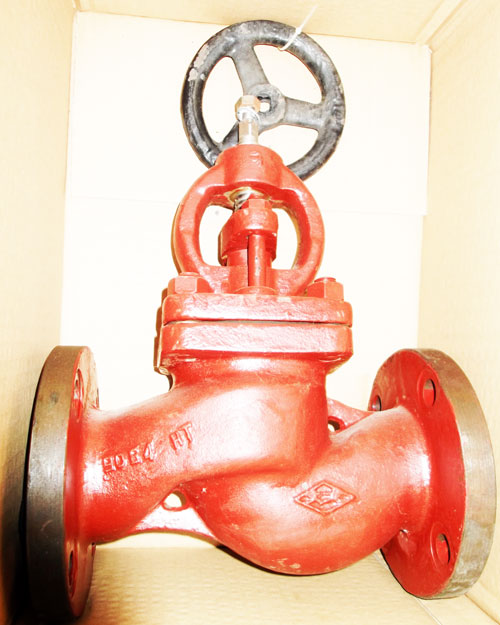

CBM1048-81 Globe valve
CBM1048-81法兰铸钢截止阀
CBM1048-81 Globe valve
Product Type: CBM1048-81
Suitable medium: fresh water, oil, fuel and temperature not higher than 300 ℃ steam
Flange connection Standard: CBM 1006
Material: valve body, valve cover material for ZG25-II, the valve plate material is steel 25, the stem material 2Cr13
|
型式 |
名称 |
公称压力PN MPa |
公称通径DN mm |
|
A |
直通截止阀 |
1.0 |
50~250 |
|
B |
直角截止阀 |
|
公称通径 DN |
法兰连接尺寸 |
高度 |
结构长度 | |||||
|
D |
C |
n |
d |
H |
L | |||
|
A型 |
B型 |
A型 |
B型 | |||||
|
50 |
155 |
120 |
4 |
19 |
288 |
378 |
220 |
120 |
|
65 |
175 |
140 |
4 |
19 |
310 |
407 |
270 |
130 |
|
80 |
185 |
150 |
8 |
19 |
345 |
444 |
300 |
140 |
|
100 |
210 |
175 |
8 |
19 |
374 |
485 |
350 |
160 |
|
125 |
250 |
210 |
8 |
23 |
426 |
546 |
420 |
180 |
|
150 |
280 |
240 |
8 |
23 |
487 |
620 |
490 |
205 |
|
(175) |
305 |
265 |
12 |
23 |
544 |
689 |
530 |
215 |
|
200 |
330 |
290 |
12 |
23 |
599 |
766 |
570 |
230 |
|
250 |
400 |
355 |
12 |
25 |
715 |
907 |
740 |
290 |
DN65 MM
DN80 MM
