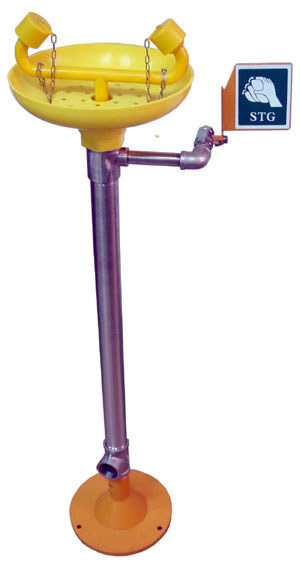

Freeze-Resistant Eye Wash, Pedestal Mounted, ABS Bowl
Application: Freeze-resistant eye/face wash for pedestal mounting. Freeze-resistant valve is designed to drain completely after use, so that no standing water remains in unit and possibility of freeze-up is eliminated. Since unit is intended for use in cold weather conditions, consideration should be given to supplying unit with tempered water in accordance with ANSI Z358.1-2004. See “Tempering Units” section for more information.
Spray Head Assembly: Two spray heads. Each head has a dust cover.
Valve: 1/2” IPS freeze-resistant valve with push plate. Valve body preventS freezing. Valve has 1/2” IPS bleed outlet to permit water standing in unit to drain out after use.
Eye/face of Bowl: 10〞diameter. yellow ABS
Pipe and Fittings: 304 stainless steel.
Supply: 1/2〞 NPT male inlet.
Waste: 1 1/4〞 NPT female outlet.
Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment
Attention:Select pedestal eye wash with Heating for moderately warm or lukewarm
Application: Freeze-resistant eye/face wash for pedestal mounting. Freeze-resistant valve is designed to drain completely after use, so that no standing water remains in unit and possibility of freeze-up is eliminated. Since unit is intended for use in cold weather conditions, consideration should be given to supplying unit with tempered water in accordance with ANSI Z358.1-2004. See “Tempering Units” section for more information.
Spray Head Assembly: Two spray heads. Each head has a dust cover.
Valve: 1/2” IPS freeze-resistant valve with push plate. Valve body preventS freezing. Valve has 1/2” IPS bleed outlet to permit water standing in unit to drain out after use.
Eye/face of Bowl: 10〞diameter. yellow ABS
Pipe and Fittings: 304 stainless steel.
Supply: 1/2〞 NPT male inlet.
Waste: 1 1/4〞 NPT female outlet.
Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment
Attention:Select pedestal eye wash with Heating for moderately warm or lukewarm
